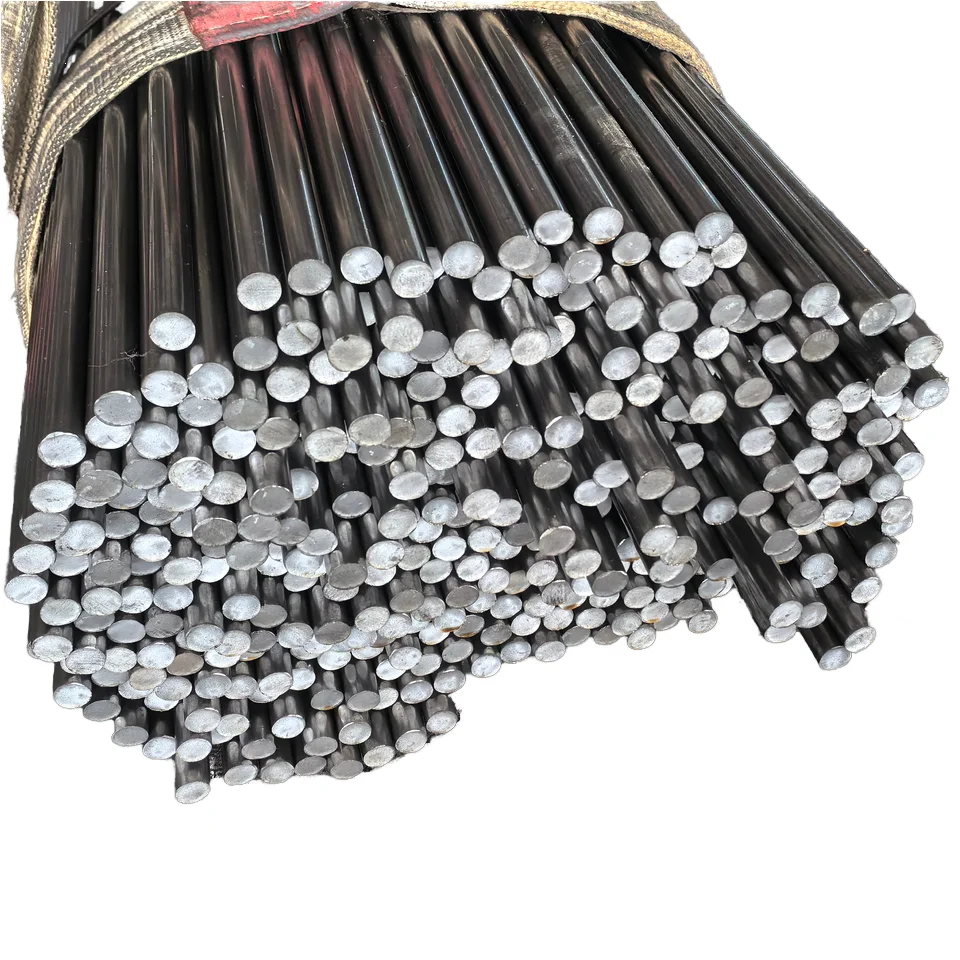

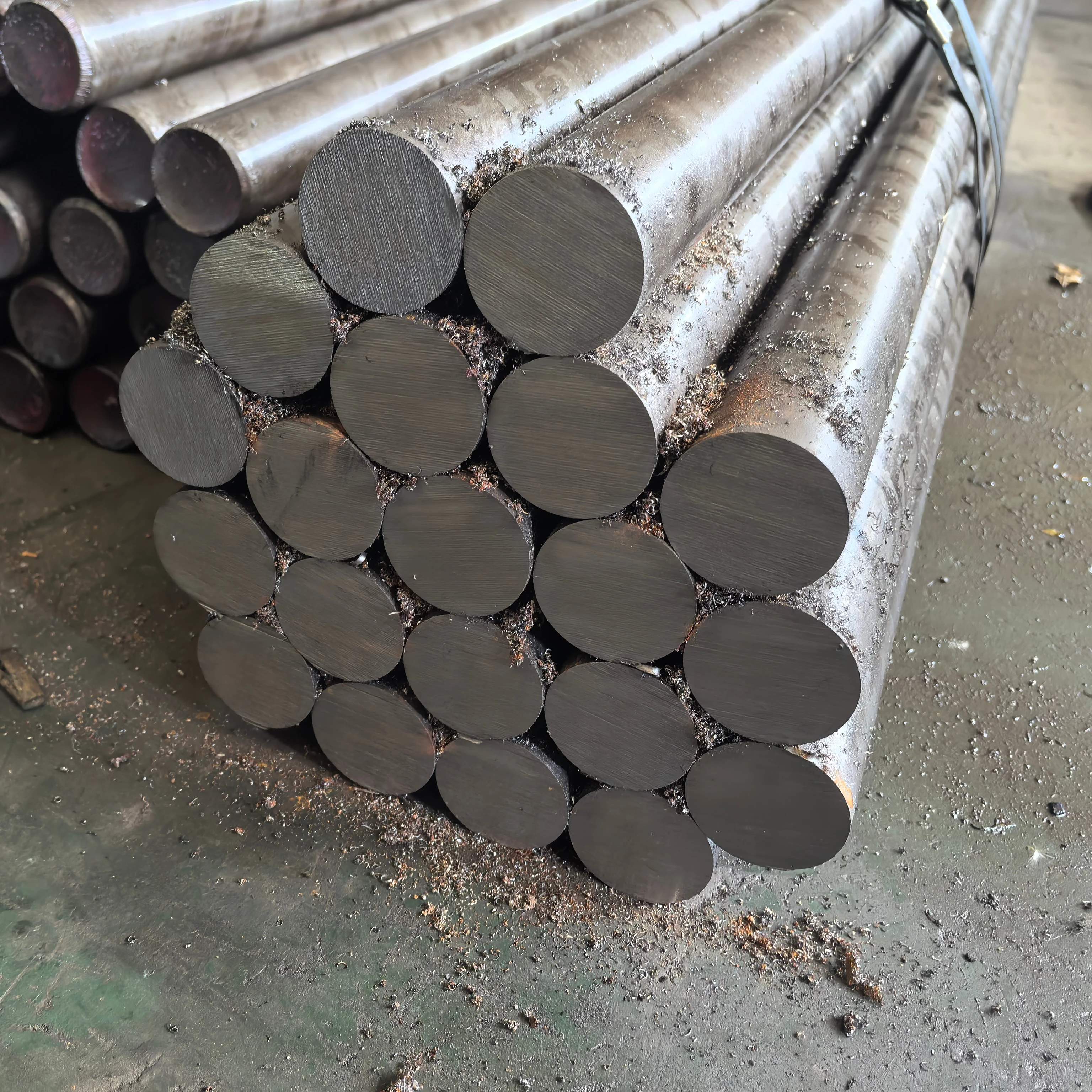

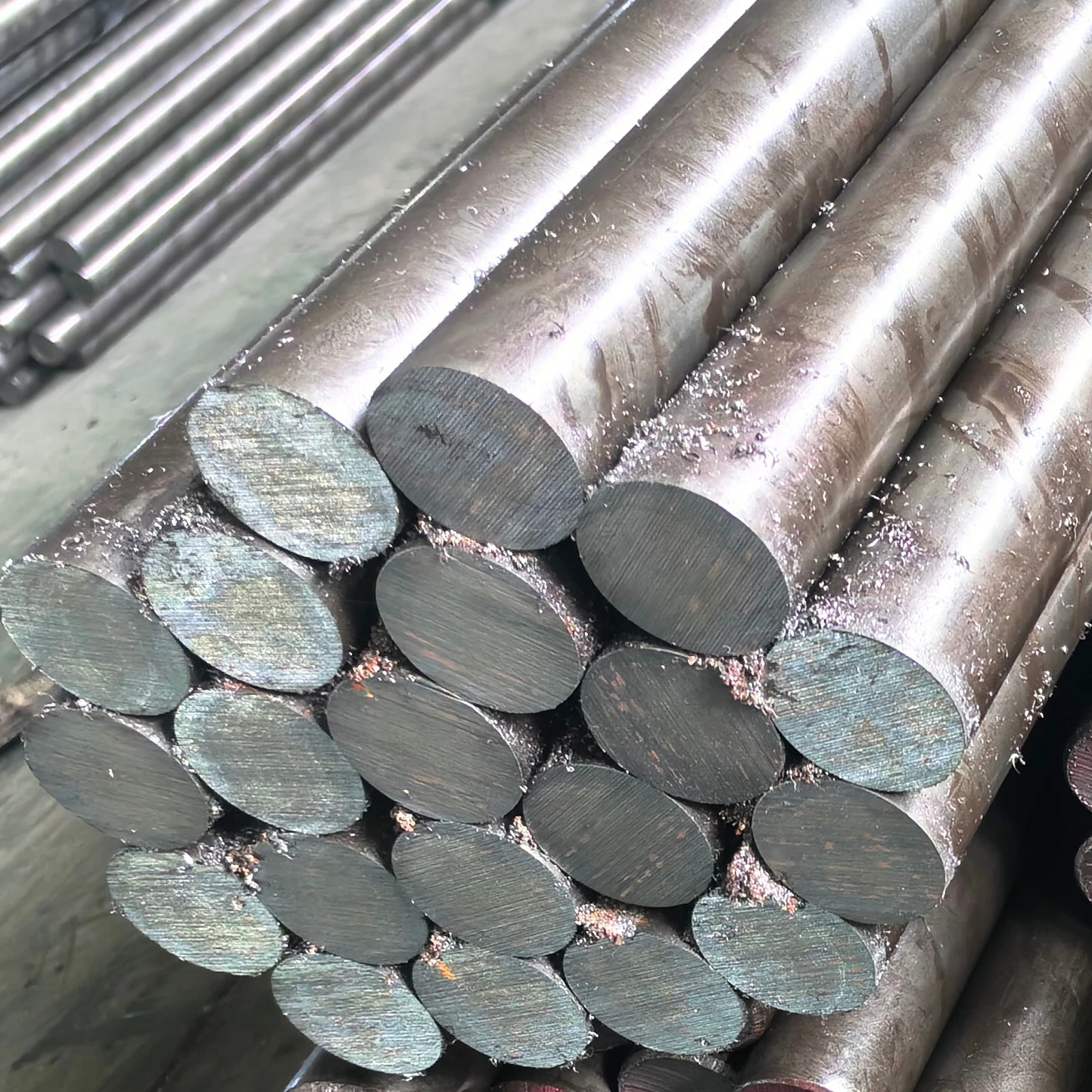

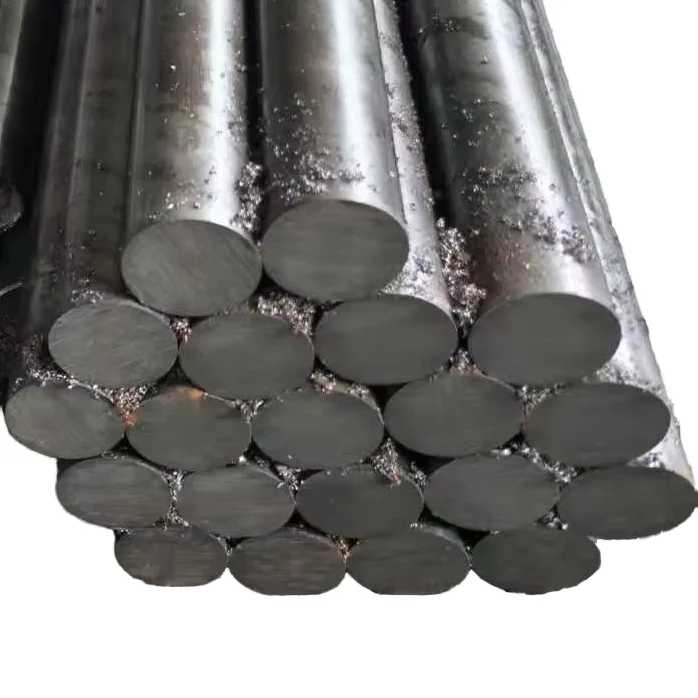

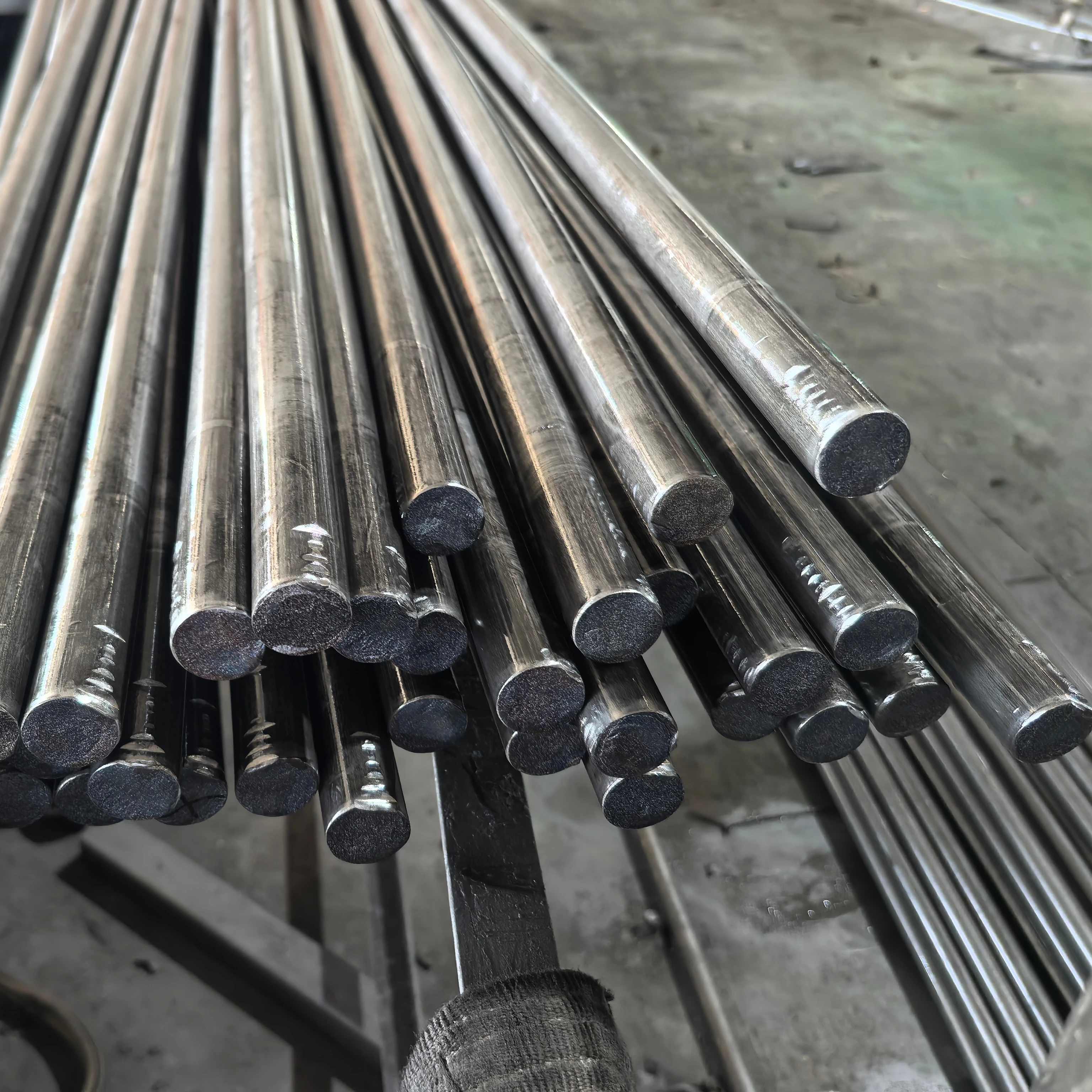

High Strength Cold Drawn Round Steel for Automotive Component Processing

● Alloy Structural Steel (40Cr, 20CrMo, 42CrMo): These grades are reinforced with chromium and molybdenum, delivering exceptional tensile strength (40Cr: 980-1170MPa; 42CrMo: 1080-1270MPa) and yield strength (40Cr: ≥785MPa; 42CrMo: ≥930MPa). The alloying elements enhance hardenability, allowing the steel to maintain strength even after heat treatment—critical for high-stress parts like transmission shafts and suspension control arms.​

● High-Carbon Steel (45#, 60#): With carbon content ranging from 0.42%-0.62%, these grades offer a balance of strength and machinability. 45# steel, for example, has a tensile strength of 600-750MPa, making it suitable for non-critical but load-bearing parts like wheel hubs and engine brackets.​

● Micro-Alloyed Steel (Q355ND, Q460C): These grades incorporate trace elements like niobium and vanadium, boosting strength without sacrificing weldability. Q460C has a tensile strength of 550-720MPa, ideal for lightweight yet strong components like frame rails, supporting automotive lightweighting goals.​

● Ultra-High Dimensional Precision: Our cold-drawn round steel meets ISO h8-h9 tolerance standards. For a 20mm diameter bar, tolerance is ±0.021mm (h8) — far tighter than hot-rolled steel’s ±0.3mm. This precision eliminates the need for excessive machining, reducing material waste and production time for automotive components. For example, when manufacturing transmission shafts, tight diameter tolerance ensures a perfect fit with bearings, minimizing vibration and extending component life.​

● Enhanced Mechanical Properties: Cold-drawing induces plastic deformation, refining the steel’s grain structure. This process increases tensile strength by 15%-25% compared to hot-rolled steel and improves fatigue resistance—vital for automotive parts like suspension springs, which endure thousands of compression cycles. The refined grain also enhances toughness, preventing brittle failure during sudden impacts (e.g., pothole encounters).​

● Superior Surface Finish: Our cold-drawn round steel has a surface roughness of Ra ≤0.8μm, significantly smoother than hot-rolled steel’s Ra 3.2μm. The smooth surface reduces friction between components (e.g., between a shaft and bushing) and improves adhesion for subsequent treatments like plating or painting. For automotive fasteners, a smooth surface also prevents corrosion by reducing moisture retention, extending part service life.​

● Quenching and Tempering: For high-stress parts like engine crankshafts, quenching (820-860℃) followed by tempering (500-600℃) increases hardness (HRC 28-35 for 40Cr) while maintaining toughness. This treatment ensures the crankshaft can withstand high torque without deformation.​

● Annealing: For parts requiring easy machining (e.g., gear blanks), annealing (650-700℃) softens the steel, reducing cutting resistance and tool wear. Annealed 45# steel has a hardness of HB 170-210, making it ideal for complex machining operations like gear hobbing.​

● Case Hardening: For components needing a hard surface and tough core (e.g., drive gears), carburizing (900-950℃) followed by quenching creates a hard outer layer (HRC 58-62) and a ductile core. This prevents wear on gear teeth while absorbing impact loads.​

● Reduced Production Costs: The steel’s high precision and machinability cut machining time by 20%-30%. For example, manufacturing a suspension arm from our cold-drawn steel requires only 2 hours of machining, compared to 3 hours for hot-rolled steel. Lower material waste (from tight tolerances) and tool wear (from smooth surface) further reduce costs.​

● Improved Component Reliability: The steel’s high strength and fatigue resistance extend part service life. Tests show that transmission shafts made from our 40Cr cold-drawn steel last 30% longer than those from hot-rolled steel, reducing warranty claims for automotive manufacturers. For safety-critical parts like brake caliper pins, the steel’s toughness prevents failure, enhancing vehicle safety.​

● Support for Lightweighting: As the automotive industry shifts toward electrification and fuel efficiency, lightweighting is a top priority. Our micro-alloyed cold-drawn steel (e.g., Q460C) offers high strength at a lower weight than traditional steel. Using Q460C for frame rails reduces vehicle weight by 8%-10% without compromising structural integrity, improving battery range for electric vehicles.​

● Compatibility with Diverse Processes: Our cold-drawn steel is suitable for all major automotive component manufacturing processes, including machining, forging, and welding. For example, 20CrMo steel can be forged into engine connecting rods and welded to other components, offering flexibility to automotive manufacturers.​

● Incoming Material Inspection: Raw steel billets are tested for chemical composition (via 光谱分析) and mechanical properties (tensile and impact tests), ensuring compliance with grade requirements.​

● In-Process Monitoring: During cold-drawing, laser diameter gauges and surface roughness testers monitor parameters in real time. Heat treatment is tracked with data loggers, recording temperature and time for every batch.​

● Final Testing: Each batch of finished steel undergoes tensile, hardness, and fatigue tests. Ultrasonic flaw detection identifies internal defects, and dimensional checks verify tolerance compliance. Only passing products are shipped, accompanied by a Material Test Report (MTR) — a requirement for automotive manufacturers to meet IATF 16949 quality standards.​

● Diameter Range: 3mm-120mm, covering most automotive components. Small diameters (3-10mm) for fasteners, medium diameters (10-50mm) for shafts, and large diameters (50-120mm) for frame parts.​

● Length Customization: Bars can be cut to 1m-12m, matching production line requirements. For example, supplying 6m bars for continuous forging of connecting rods reduces handling time.​

● Surface Treatments: Optional treatments include galvanization (for corrosion resistance), phosphating (for paint adhesion), and oil coating (for rust prevention during storage).​
