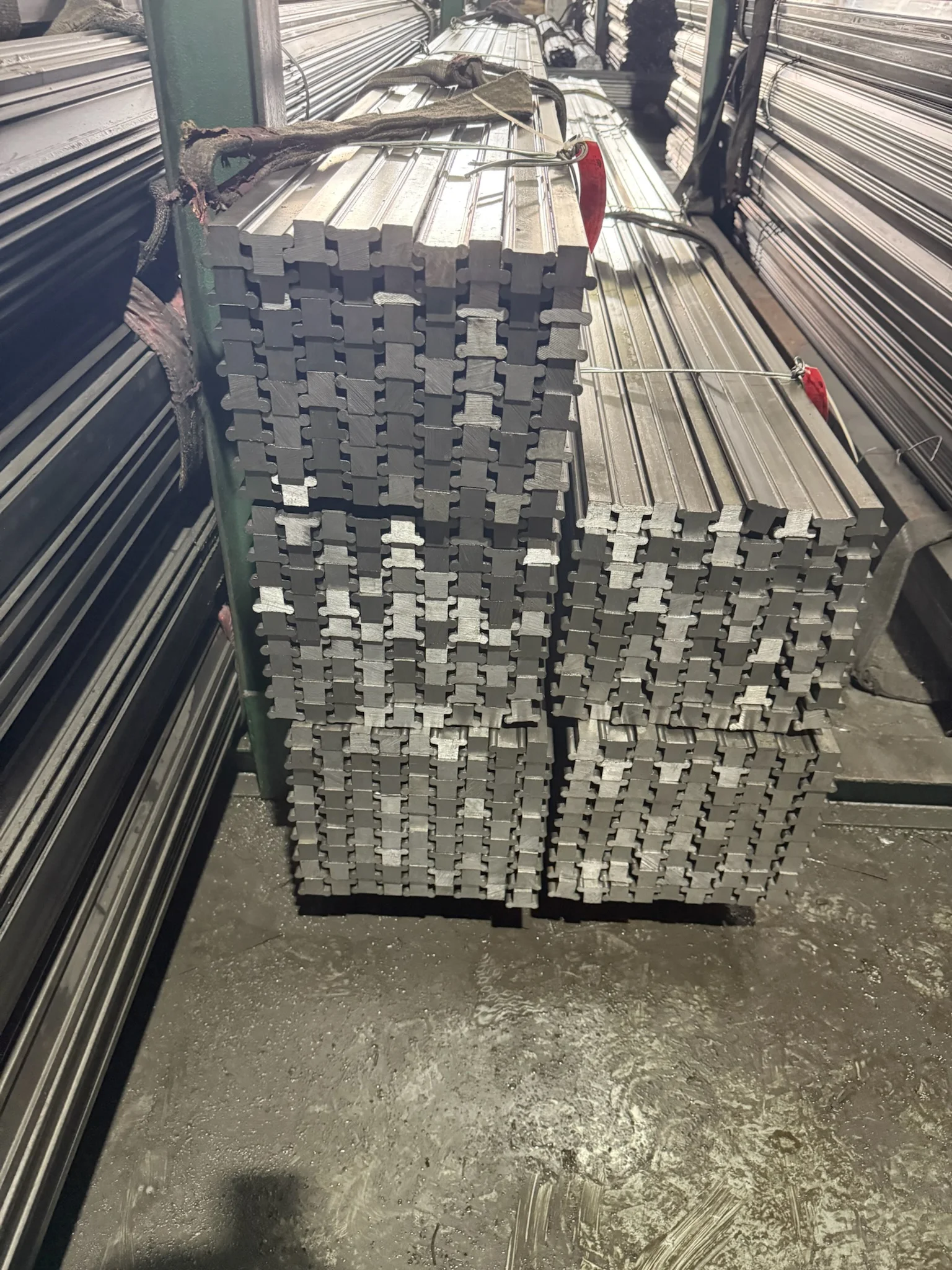

Cold Drawn I Shaped Steel Bar Mini I Beam Profile Precision Cold Drawn Carbon Steel Section Rod
Our precision cold-drawn I-shaped steel bar, a mini I-beam profile, is made of high-quality carbon steel. It boasts tight tolerance, uniform structure, and excellent load-bearing, ideal for precision machinery and light structural applications.
- Overview
- Recommended Products
In the intricate landscape of modern manufacturing, where precision and performance are non-negotiable, the Cold Drawn I Shaped Steel Bar—commonly known as the mini I-beam profile—has emerged as a game-changing structural component. Crafted through advanced cold-drawing processes and engineered from high-purity carbon steel, this specialized section rod redefines standards for dimensional accuracy, mechanical stability, and application versatility. Unlike conventional hot-rolled I-beams that often suffer from surface roughness and internal defects, the cold-drawn variant delivers consistent quality that caters to the rigorous demands of precision machinery, automotive components, aerospace accessories, and light structural engineering. Its unique I-shaped cross-section, combined with the benefits of cold working, makes it a preferred choice for designers and manufacturers seeking to balance strength, weight efficiency, and processability.
At the heart of the cold-drawn I-shaped steel bar’s superiority lies its precision manufacturing process, which sets it apart from traditional forming methods. The production begins with selecting high-quality carbon steel billets—typically grades such as 10#, 20#, or 45#—chosen for their balanced carbon content (ranging from 0.1% to 0.45%) that ensures both ductility and strength. These billets undergo strict pre-treatment, including descaling and annealing, to remove surface impurities and soften the material, preparing it for the cold-drawing stage. Unlike hot rolling, which relies on high temperatures to shape steel, cold drawing involves pulling the steel billet through a custom-engineered I-shaped die at room temperature. This cold-working process exerts intense compressive and tensile forces on the material, refining its grain structure into a dense, uniform arrangement. The result is a rod with exceptional dimensional precision: side tolerances as tight as ±0.03mm, straightness within 0.5mm/m, and a smooth surface finish (Ra ≤ 1.6μm) that eliminates the need for additional grinding or polishing. For applications like precision gears, linear guides, or medical equipment components, this level of accuracy is not just a convenience—it’s a critical requirement that directly impacts product performance and lifespan.
The unique I-shaped cross-section of the steel bar further amplifies its structural advantages, making it an efficient load-bearing solution. The I-beam design—characterized by a central web and two parallel flanges—distributes weight and stress evenly across the component. The web provides lateral stability and resists shear forces, while the flanges bear the brunt of bending loads, ensuring the bar maintains its shape even under dynamic or repetitive stress. In miniaturized applications (common for this product, with flange widths ranging from 10mm to 50mm), this structural efficiency is particularly valuable: it allows manufacturers to reduce the overall weight of their products without compromising strength. For example, in small-scale conveyor systems, the cold-drawn I-shaped bar serves as a lightweight yet robust track, supporting the weight of materials while minimizing the energy required for movement. In automotive interior components, such as seat frames or instrument panel supports, it offers the rigidity needed to meet safety standards while contributing to vehicle weight reduction—an essential factor in improving fuel efficiency and reducing emissions. Compared to solid square or round bars of the same weight, the I-shaped profile delivers up to 30% higher bending strength, making it a more cost-effective and material-efficient choice.
Another key benefit of the cold-drawn I-shaped carbon steel bar is its superior mechanical properties, a direct result of the cold-working process and high-quality base material. Cold drawing enhances the steel’s tensile strength and yield strength by up to 25% compared to hot-rolled equivalents. For instance, a 20# carbon steel cold-drawn I-beam typically exhibits a tensile strength of 450-550MPa and a yield strength of 240-300MPa, far exceeding the values of hot-rolled 20# steel (tensile strength: 350-450MPa; yield strength: 210MPa). This enhanced strength, combined with the material’s inherent ductility (elongation ≥ 15%), allows the bar to withstand sudden impacts and cyclic loads without fracturing—a crucial property for components in machinery that operates continuously. Additionally, the cold-drawing process eliminates internal defects such as porosity, segregation, and oxide inclusions, ensuring a uniform structure that reduces the risk of premature failure. Manufacturers can rely on this consistency to streamline their production processes, as they don’t have to account for variations in material strength across batches.
Versatility is yet another hallmark of the cold-drawn I-shaped steel bar, with applications spanning nearly every sector of manufacturing and engineering. In the precision machinery industry, it is widely used to produce guide rails, support brackets, and machine tool components, where its tight tolerances ensure smooth operation and precise alignment. For example, in 3D printing equipment, the bar serves as a stable frame component that minimizes vibration during printing, ensuring high-quality output. In the aerospace and defense sectors, its lightweight and high-strength properties make it suitable for manufacturing small structural parts in drones, satellites, and military equipment, where every gram of weight savings matters. The automotive industry leverages the bar for components like door hinges, suspension parts, and exhaust system brackets, benefiting from its corrosion resistance (when treated with galvanization or powder coating) and long service life. Even in consumer electronics, the mini I-beam profile is used in the frames of large-screen TVs, laptops, and fitness equipment, providing structural support without adding unnecessary bulk.
Quality control is a cornerstone of the production process for cold-drawn I-shaped steel bars, ensuring that every product meets international standards and customer specifications. Manufacturers adhere to strict guidelines such as GB/T 3078-2008 (China) and ASTM A108 (USA), conducting rigorous inspections at every stage of production. Dimensional accuracy is verified using precision measuring tools like micrometers and coordinate measuring machines (CMMs), while surface quality is checked for scratches, cracks, or oxide scale. Mechanical properties are tested through tensile, bending, and hardness tests, with samples taken from each batch to ensure consistency. Non-destructive testing methods, such as ultrasonic testing and magnetic particle inspection, are also employed to detect internal defects that may not be visible to the naked eye. For customers with specific requirements, customization options are available, including different carbon steel grades, cross-sectional dimensions, surface treatments (galvanizing, phosphatizing, oiling), and length cuts (from 1m to 6m or custom lengths). This flexibility allows the product to adapt to the unique needs of diverse applications, from small-scale workshops to large industrial facilities.
In an era where manufacturing is increasingly focused on efficiency, sustainability, and precision, the cold-drawn I-shaped carbon steel bar stands out as a material that delivers on all fronts. Its precision cold-drawn process reduces material waste (by minimizing the need for post-processing), its lightweight I-shaped profile lowers energy consumption in end products, and its consistent quality reduces production downtime and rework. For manufacturers, this translates to lower costs, higher productivity, and a competitive edge in the market. For end-users, it means more reliable, durable products that perform consistently over time.
In conclusion, the Cold Drawn I Shaped Steel Bar is more than just a structural component—it’s a testament to the advancements in metal processing technology. By combining the strength of carbon steel, the precision of cold drawing, and the efficiency of the I-beam profile, it addresses the evolving needs of modern manufacturing across industries. Whether used in high-tech aerospace applications or everyday consumer products, this versatile section rod delivers the performance, reliability, and value that manufacturers and designers demand. As technology continues to advance, the cold-drawn I-shaped steel bar will undoubtedly remain a vital material, driving innovation and excellence in the world of engineering and production.
Cold drawn steel profiles are precision steel products manufactured through a cold-drawing process at room temperature.
This process significantly improves dimensional accuracy, surface smoothness, and mechanical properties compared to hot-rolled steel.
They are widely used in machinery manufacturing, construction structures, automotive components, and precision equipment.
This process significantly improves dimensional accuracy, surface smoothness, and mechanical properties compared to hot-rolled steel.
They are widely used in machinery manufacturing, construction structures, automotive components, and precision equipment.
Material Grades Available
Carbon Steel: Q195, Q215, Q235, 20#, 35#, 45#, 55#
Alloy / Gear Steel: 40Cr, 20CrMo, 35CrMo, 42CrMo, 20Cr, 20CrMoTi, Q355
Free Cutting Steel: 1215, 12L14, 1144
Bearing Steel: GCr15
Spring Steel: 60Si2Mn, 65Mn
Carbon Steel: Q195, Q215, Q235, 20#, 35#, 45#, 55#
Alloy / Gear Steel: 40Cr, 20CrMo, 35CrMo, 42CrMo, 20Cr, 20CrMoTi, Q355
Free Cutting Steel: 1215, 12L14, 1144
Bearing Steel: GCr15
Spring Steel: 60Si2Mn, 65Mn
Product Name |
Cold Drawn I-Shaped Steel Bar / Mini I-Beam Profile |
Material |
Q235 / Q345 / 45# / 20# / Customized Carbon Steel |
Processing Method |
Cold Drawn / Cold Formed / Precision Drawn |
Surface Finish |
Smooth / Bright / Oiled / Black |
Section Shape |
I-Shaped (Mini I-Beam) |
Size Range |
Width 5–30 mm；Thickness 3–15 mm；Length 3m / 6m / Custom |
Tolerances |
±0.05–0.10 mm (depending on size) |
Mechanical Properties |
High Strength / Good Rigidity / Stable Shape |
Application Fields |
Machinery Parts / Guide Rails / Industrial Frames / Equipment Components / Hardware Accessories |
Customization |
Accept OEM/ODM；Support Cutting、Straightening |
Package |
Steel Strip Bundles / Wooden Pallet / Customized Export Package |
Delivery Port |
Shanghai / Ningbo / Any China Port |
MOQ |
1 Ton |
Certification |
ISO9001 / Material Test Report (MTR) |
✅ High Dimensional Precision – Tolerance up to ±0.02mm
✅ Bright Surface Finish – Smooth and oxide-free, ready for machining
✅ Enhanced Mechanical Strength – Balanced hardness and toughness
✅ High Material Utilization – Reduced machining allowance, higher efficiency
✅ Customizable Solutions – Shapes, sizes, and materials can be tailored to drawings or requirements
✅ Bright Surface Finish – Smooth and oxide-free, ready for machining
✅ Enhanced Mechanical Strength – Balanced hardness and toughness
✅ High Material Utilization – Reduced machining allowance, higher efficiency
✅ Customizable Solutions – Shapes, sizes, and materials can be tailored to drawings or requirements

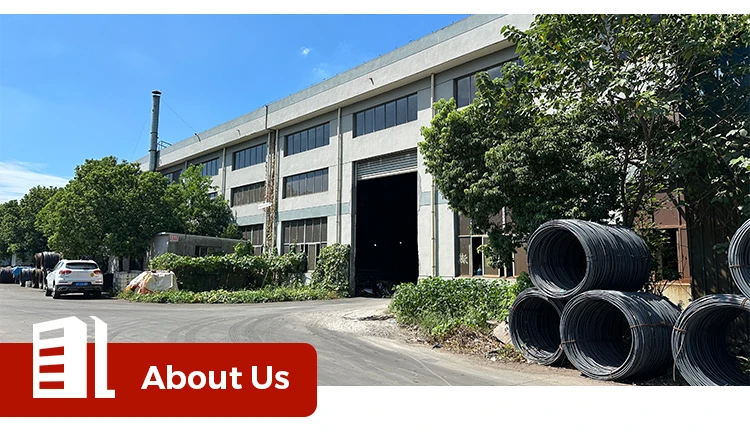

Jiangsu Beitong Cold-Drawn Steel Technology Co., Ltd.
was established in 2018 with an investment of 80 million RMB.Located in Fenhu High-Tech Zone, Wujiang District, Suzhou, Jiangsu Province, the company covers an area of 35 mu (≈23,000 m²) and integrates R&D, production, and modern management.
With a team of over 60 employees, including skilled engineers and R&D professionals, Beitong specializes in the research and manufacture of precision cold-drawn steel products, serving more than 5,000 domestic and overseas customers.
Guided by technological innovation, Beitong has obtained over 10 national patents, was recognized as a Provincial Science &Technology SME (2022), achieved ISO Three-System Certification (2023), and was honored as a Specialized and Innovative SME (2024).

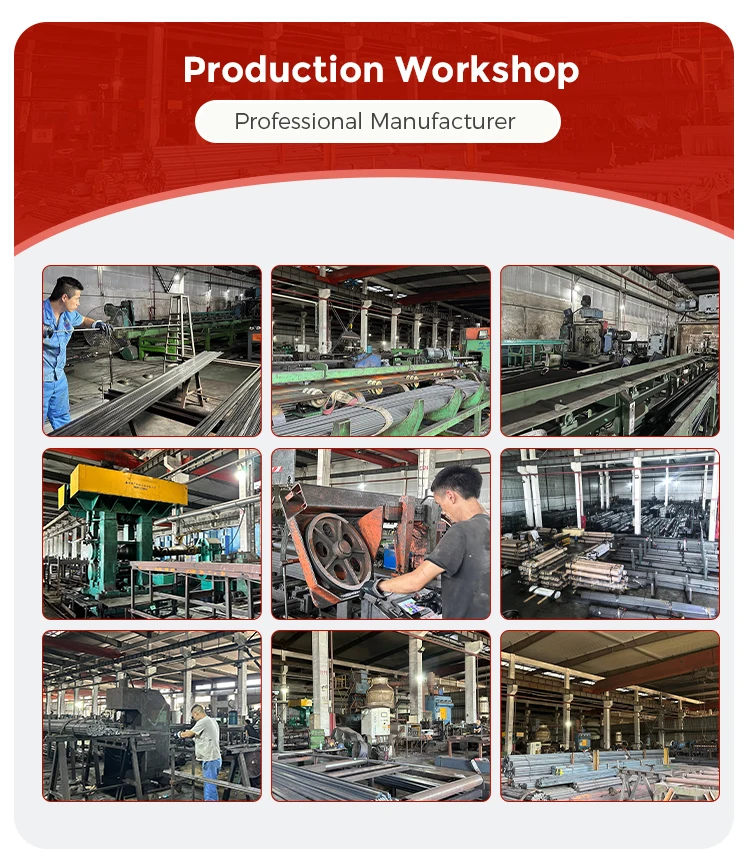

The company operates 50+ advanced cold-drawing production lines, equipped with mechanical performance testers, ultrasonic flaw detectors, and full laboratory analysis systems, ensuring reliable quality and strong technical capability.
Main Products & Applications
* Elevator guide rails – exported to the Middle East
* Automotive parts materials – supplied to major brands such as BYD, Tesla, Toyota, SAIC, GAC, Huawei, and CATL
* Chain flat steel and precision shafts
* Free-cutting steel – directly supplied to top domestic automation enterprises
Our products are widely used in construction machinery, automotive, aerospace, petroleum, coal mining, national defense, textile machinery, machine tools, agricultural equipment, fitness equipment, and elevators.
With solid technology and stable quality, Beitong warmly welcomes customers worldwide for long-term cooperation and mutual
success.
With a team of over 60 employees, including skilled engineers and R&D professionals, Beitong specializes in the research and manufacture of precision cold-drawn steel products, serving more than 5,000 domestic and overseas customers.
Guided by technological innovation, Beitong has obtained over 10 national patents, was recognized as a Provincial Science &Technology SME (2022), achieved ISO Three-System Certification (2023), and was honored as a Specialized and Innovative SME (2024).
The company operates 50+ advanced cold-drawing production lines, equipped with mechanical performance testers, ultrasonic flaw detectors, and full laboratory analysis systems, ensuring reliable quality and strong technical capability.
Main Products & Applications
* Elevator guide rails – exported to the Middle East
* Automotive parts materials – supplied to major brands such as BYD, Tesla, Toyota, SAIC, GAC, Huawei, and CATL
* Chain flat steel and precision shafts
* Free-cutting steel – directly supplied to top domestic automation enterprises
Our products are widely used in construction machinery, automotive, aerospace, petroleum, coal mining, national defense, textile machinery, machine tools, agricultural equipment, fitness equipment, and elevators.
With solid technology and stable quality, Beitong warmly welcomes customers worldwide for long-term cooperation and mutual
success.
FAQ
1. When can you produce the samples?
Usually, it takes 5–7 days to produce samples.
2. What is your minimum order quantity (MOQ)?
For cold-drawn steel profiles, we usually offer two purchasing options — LTL (less than truckload) and bulk order, starting from 2 tons. The specific quantity can be discussed.
3. What is your delivery time?
For customized product orders, we can arrange shipment within 30 days after receiving the deposit.
4. Which ports do you ship from?
We usually ship from Shanghai Port.
5. What are your payment terms?
Normally 30% T/T deposit in advance, and the balance against the copy of the Bill of Lading.
6. Where is your company located?
Our factory is located in Jiangsu Province, China.
7. What are your main products?
We specialize in cold-drawn steel:
* Cold drawn round bar
* Cold drawn square bar
* Cold drawn flat bar
* Cold drawn hexagonal bar
* Cold drawn special-shaped bar
Material Grades:
* Carbon steel: Q215, Q195, Q235, 20#, 35#, 45#, 55#
* Alloy / gear steel: Q355, 40Cr, 20CrMo, 35CrMo, 42CrMo, 20Cr, 20CrMoTi
* Free cutting steel: 1215, 12L14, 1144
* Bearing steel: GCr15
* Spring steel: 60Si2Mn, 65Mn
Service Commitment:
24-Hour Feedback, 48-Hour Solution
8. What types of carbon steel bars are there?
* Low carbon steel bar: Low carbon content, good toughness, suitable for welding and machining.
* Medium carbon steel bar: Balanced strength and toughness, ideal for mechanical parts.
* High carbon steel bar: High hardness, used for tools and springs.
9. Will carbon steel bars rust?
Yes. Carbon steel bars can rust in humid environments. Coating, galvanizing, or heat treatment can improve corrosion resistance.
10. What are the common applications of carbon steel bars?
* Building structures (rebar, support rods)
* Mechanical parts (shafts, bolts)
* Tools (cutting tools, drill bits)
11. How to determine the size specifications of carbon steel bars?
Classified by diameter and length.
Diameter: from a few millimeters to several hundred millimeters.
Length: typically 6 meters or customized.
12. What is the fatigue resistance of carbon steel bars?
Fatigue performance depends on carbon content, microstructure, and surface quality.
It can be improved by surface treatment (rolling, polishing) or optimized heat treatment.
13. What should be noted when welding carbon steel bars?
* Low carbon steel: easy to weld, but avoid overheating.
* High carbon steel: prone to cracking during welding; preheating and post-heat treatment are recommended.
14. Can I get samples?
Yes, samples are available.
15. Do you have a factory?
Yes, we have our own factory in Jiangsu, and warmly welcome your visit.
We are a professional cold-drawn steel manufacturer providing OEM & ODM services.
