Cold Drawn Hex Bar for Industrial Equipment Construction Tools and Hardware Processing Carbon Steel Hexagonal Bar

The performance foundation of the cold-drawn carbon steel hex bar lies in its high-quality carbon steel base material and scientific material selection. According to different application scenarios, the product usually adopts carbon steel grades such as 10#, 20#, 35#, and 45#, covering low-carbon to medium-carbon ranges. Low-carbon grades (10#, 20#) with carbon content of 0.10%-0.22% are mainly used in scenarios requiring good weldability and formability, such as connecting pins of construction tools and lightweight industrial equipment components; medium-carbon grades (35#, 45#) with carbon content of 0.35%-0.45% have higher strength and hardness after cold drawing, and are suitable for stress-bearing parts such as gears, shafts, and nuts of industrial equipment. Regardless of the grade, the selected carbon steel billets all comply with national standards such as GB/T 700-2006, with stable chemical composition and no harmful inclusions. This ensures that the cold-drawn hex bar has a uniform internal structure, avoiding quality hidden dangers such as cracks and pores caused by material defects during processing and use.

The precision cold-drawing process is the key to creating the unique advantages of the cold-drawn hex bar. The production process of this product has strict technical control over each link. First, the carbon steel billet needs to undergo pre-treatment processes such as annealing, pickling, and phosphating. Annealing softens the billet, reduces internal stress, and improves its plasticity to adapt to the cold-drawing process; pickling and phosphating remove the oxide scale on the surface of the billet, prevent rust, and form a lubricating film to reduce friction between the billet and the die during cold drawing. Then, the treated billet is pulled through a special hexagonal die at room temperature. The cold-drawing process applies a certain tensile force to make the billet undergo plastic deformation, and finally forms a hexagonal cross-section that is consistent with the die size. This cold-working process not only shapes the product but also significantly improves its mechanical properties: the grain structure of the carbon steel is refined under the action of cold drawing, the internal density is increased, and the tensile strength and yield strength are increased by 20%-30% compared with the hot-rolled state. At the same time, the cold-drawing process ensures extremely high dimensional accuracy of the hex bar: the opposite side distance tolerance can be controlled within ±0.05mm, the adjacent side perpendicularity error is less than 0.1mm/m, and the straightness is within 0.3mm/m. The surface roughness of the product after cold drawing can reach Ra ≤ 1.6μm, which is smooth and burr-free, and can be directly used for precision machining without additional grinding.

The regular hexagonal cross-section design of the cold-drawn hex bar gives it unique application value that round bars and square bars cannot match. The hexagonal structure has good force transmission performance and can evenly distribute the torque and pressure borne during use, which is particularly suitable for parts that need to transmit power, such as shafts and gears in industrial equipment. Compared with round bars, the hexagonal cross-section has a larger contact area with the wrench during assembly and disassembly, which is not easy to slip, making the operation more convenient and efficient—this is why cold-drawn hex bars are widely used in the production of bolts, nuts, and other fasteners. In addition, the regular shape of the hexagon is conducive to automated feeding and processing in the production process, reducing the positioning time of the workpiece and improving the production efficiency of the assembly line. For example, in the production of hardware fasteners, using cold-drawn hex bars as raw materials can reduce the turning process of the cross-section, directly processing threads, and the material utilization rate is increased by more than 15% compared with using round bars.

The versatility of the cold-drawn carbon steel hex bar is reflected in its wide application across multiple industries. In the industrial equipment field, it is an important raw material for manufacturing components such as reducer gears, conveyor chain pins, textile machinery spindles, and agricultural machinery parts. The medium-carbon cold-drawn hex bar (such as 45#) has high strength and wear resistance, which can ensure the stable operation of the equipment under long-term load; the low-carbon hex bar (such as 20#) is used in the production of thin-walled parts of equipment due to its good weldability. In the construction tool field, the cold-drawn hex bar is used to make the core components of tools such as wrenches, screwdrivers, and hammers. Its precise dimensions ensure the fit between the tool and the workpiece, and its high strength avoids deformation or breakage during use. In the hardware processing field, it is the first choice for producing precision hardware such as bolts, nuts, rivets, and hinges. The smooth surface and precise dimensions reduce the difficulty of subsequent processing, and the stable mechanical properties ensure the reliability of the hardware products. In addition, it is also used in the production of auto parts, such as valve stems and connecting rods, and in the manufacturing of medical equipment and electronic components, showing strong adaptability.

Strict quality control is the guarantee for the stable performance of the cold-drawn carbon steel hex bar. Manufacturers have established a full-process quality monitoring system from raw material incoming inspection to finished product delivery. In the raw material stage, the chemical composition of the carbon steel billet is tested by spectral analysis, and the mechanical properties are verified by tensile and impact tests to ensure that it meets the grade requirements. During the cold-drawing process, real-time monitoring is carried out on the drawing speed, die temperature, and tensile force, and the dimensional accuracy of the semi-finished product is sampled and tested every hour to avoid batch quality problems caused by process deviations. After the product is formed, a series of strict inspections are carried out: using a vernier caliper and a coordinate measuring machine to detect the opposite side distance, side length, and perpendicularity of the hexagon; using a roughness meter to test the surface quality; using a hardness tester to confirm the mechanical properties; and using ultrasonic testing to check for internal defects. The qualified rate of each batch of products is required to reach 100%, and each product is accompanied by a quality inspection report, which clearly records the batch number, material grade, test data, and other information, providing a reliable basis for customers' quality traceability.

In the context of increasing pursuit of production efficiency and product quality in the manufacturing industry, the cold-drawn carbon steel hex bar has significant economic and practical value. For manufacturers, its high dimensional accuracy and smooth surface can reduce the number of post-processing procedures (such as turning, grinding), shorten the production cycle, and reduce processing costs. Taking the production of M16 hexagon nuts as an example, using cold-drawn hex bars as raw materials can directly perform upsetting and threading, while using hot-rolled hex bars requires additional turning to adjust the dimensions, and the processing time is reduced by about 25%. At the same time, the high material utilization rate of the cold-drawn hex bar reduces the generation of processing waste, which is in line with the development concept of energy conservation and environmental protection. For end users, the stable mechanical properties of the product ensure the service life of the equipment and tools made of it, reducing the maintenance cost and replacement frequency caused by material failure. For example, a construction tool factory reported that after switching to cold-drawn hex bars to produce wrench heads, the product failure rate due to deformation dropped from 3.2% to 0.5%, and the after-sales maintenance cost was reduced by 40%.

In conclusion, the Cold Drawn Carbon Steel Hexagonal Bar is a high-performance profile that integrates precision, strength, and processability. It relies on high-quality carbon steel materials, advanced cold-drawing technology, and regular hexagonal structural design to provide efficient and reliable material solutions for industrial equipment, construction tools, and hardware processing industries. Its advantages in dimensional accuracy, mechanical properties, and application convenience not only improve the production efficiency of manufacturers but also enhance the quality and service life of end products. With the continuous development of manufacturing technology, the cold-drawn hex bar will be further optimized in terms of material grades, dimensional specifications, and surface treatments to adapt to more complex application scenarios. Whether in large-scale industrial production or small-batch precision processing, it will continue to play an important role, becoming a key support for the high-quality development of the manufacturing industry.

1. When can you produce the samples?
Usually, it takes 5–7 days to produce samples.
2. What is your minimum order quantity (MOQ)?
For cold-drawn steel profiles, we usually offer two purchasing options - LTL (less than truckload) and bulk order, starting from 2 tons. The specific quantity can be discussed.
3. What is your delivery time?
For customized product orders, we can arrange shipment within 30 days after receiving the deposit.
4. Which ports do you ship from?
We usually ship from Shanghai Port.
5. What are your payment terms?
Normally 30% T/T deposit in advance, and the balance against the copy of the Bill of Lading.
6. Where is your company located?
Our factory is located in Jiangsu Province, China.
7. What are your main products?

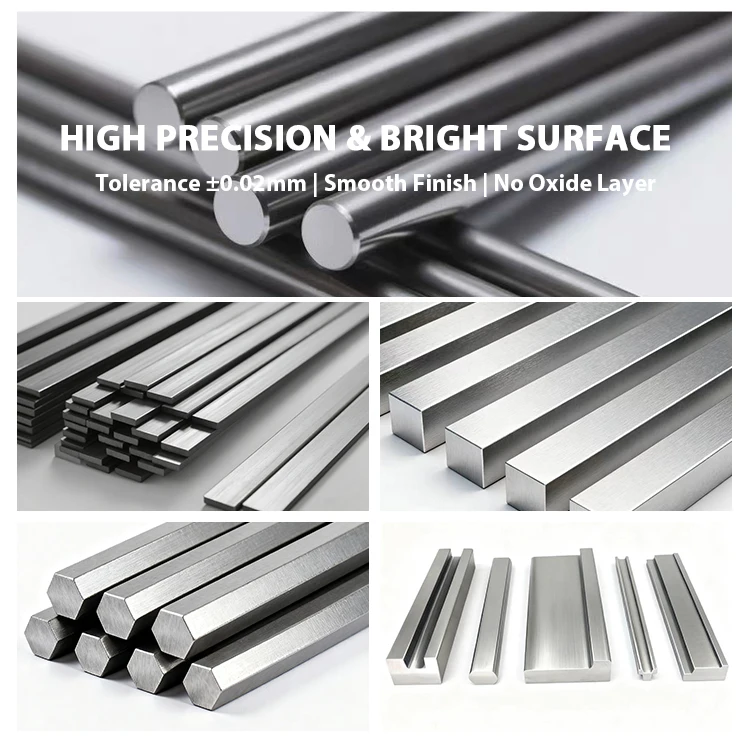

We specialize in cold-drawn steel:
* Cold drawn round bar
* Cold drawn square bar
* Cold drawn flat bar
* Cold drawn hexagonal bar
* Cold drawn special-shaped bar
Material Grades:
* Carbon steel: Q215, Q195, Q235, 20#, 35#, 45#, 55#
* Alloy / gear steel: Q355, 40Cr, 20CrMo, 35CrMo, 42CrMo, 20Cr, 20CrMoTi
* Free cutting steel: 1215, 12L14, 1144
* Bearing steel: GCr15
* Spring steel: 60Si2Mn, 65Mn
Service Commitment:
24-Hour Feedback, 48-Hour Solution
8. What types of carbon steel bars are there?
* Low carbon steel bar: Low carbon content, good toughness, suitable for welding and machining.
* Medium carbon steel bar: Balanced strength and toughness, ideal for mechanical parts.
* High carbon steel bar: High hardness, used for tools and springs.
9. Will carbon steel bars rust?
Yes. Carbon steel bars can rust in humid environments. Coating, galvanizing, or heat treatment can improve corrosion resistance.
10. What are the common applications of carbon steel bars?
* Building structures (rebar, support rods)
* Mechanical parts (shafts, bolts)
* Tools (cutting tools, drill bits)
11. How to determine the size specifications of carbon steel bars?
Classified by diameter and length.
Diameter: from a few millimeters to several hundred millimeters.
Length: typically 6 meters or customized.
12. What is the fatigue resistance of carbon steel bars?
Fatigue performance depends on carbon content, microstructure, and surface quality.
It can be improved by surface treatment (rolling, polishing) or optimized heat treatment.
13. What should be noted when welding carbon steel bars?
* Low carbon steel: easy to weld, but avoid overheating.
* High carbon steel: prone to cracking during welding; preheating and post-heat treatment are recommended.
14. Can I get samples?
Yes, samples are available.
15. Do you have a factory?

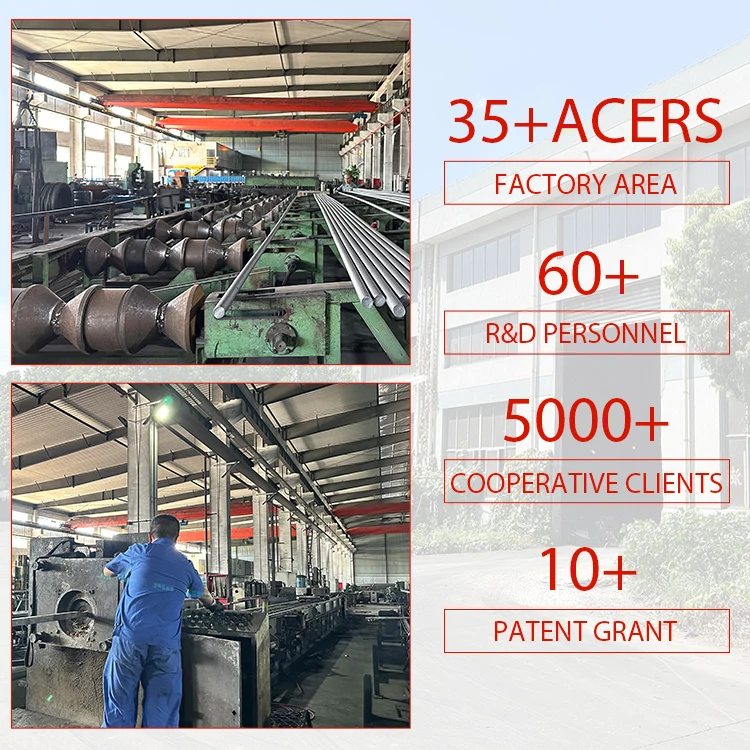

Yes, we have our own factory in Jiangsu, and warmly welcome your visit.
We are a professional cold-drawn steel manufacturer providing OEM & ODM services.
