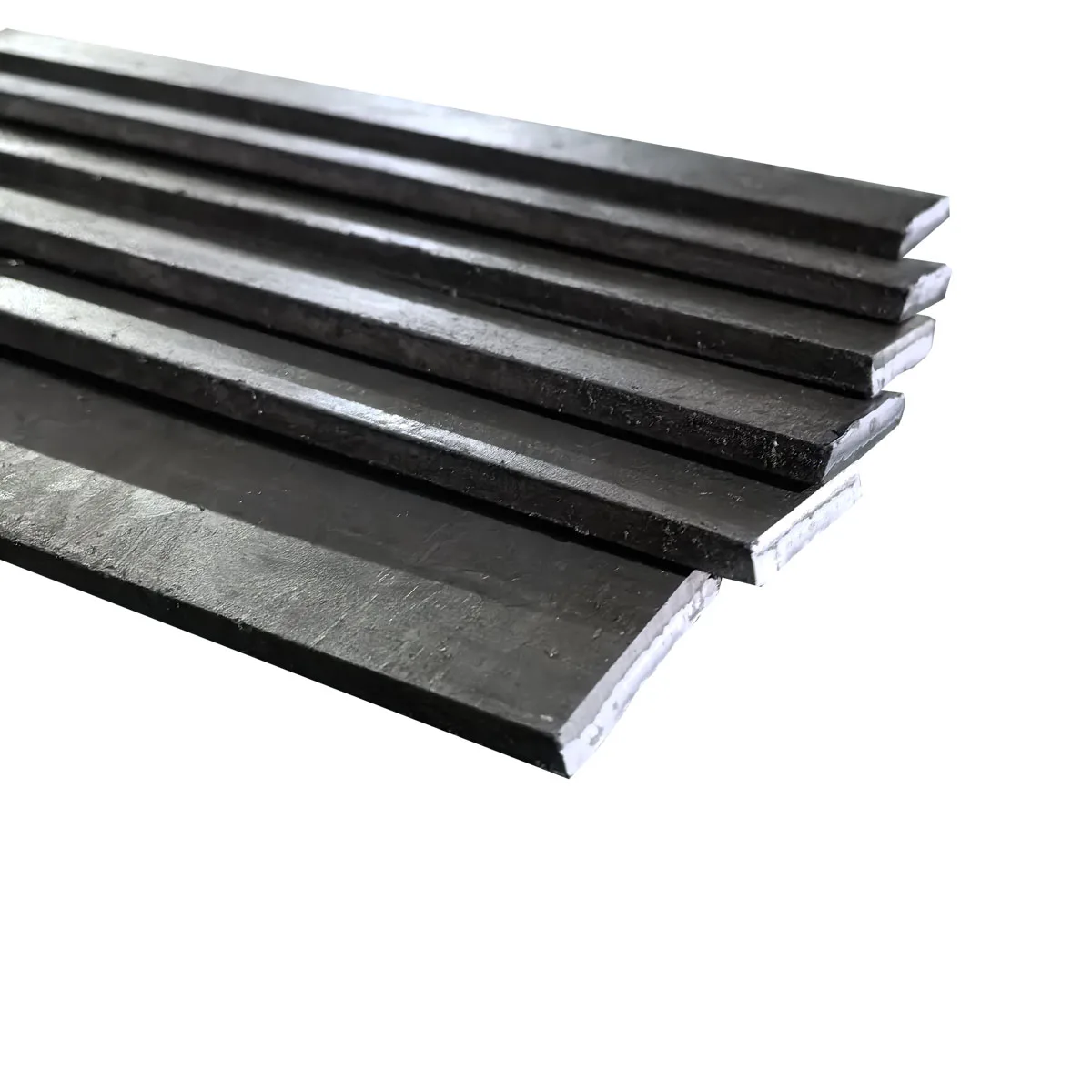

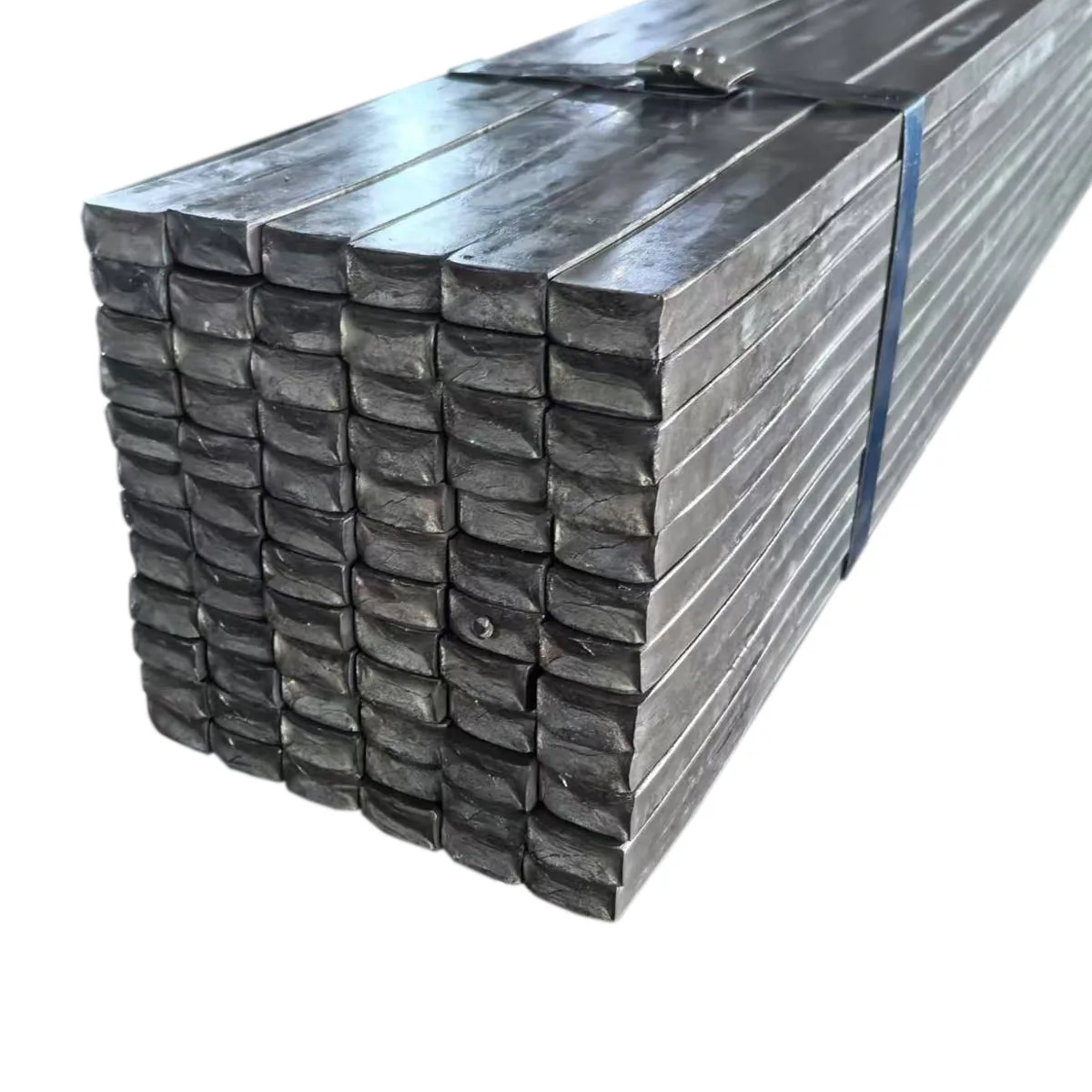

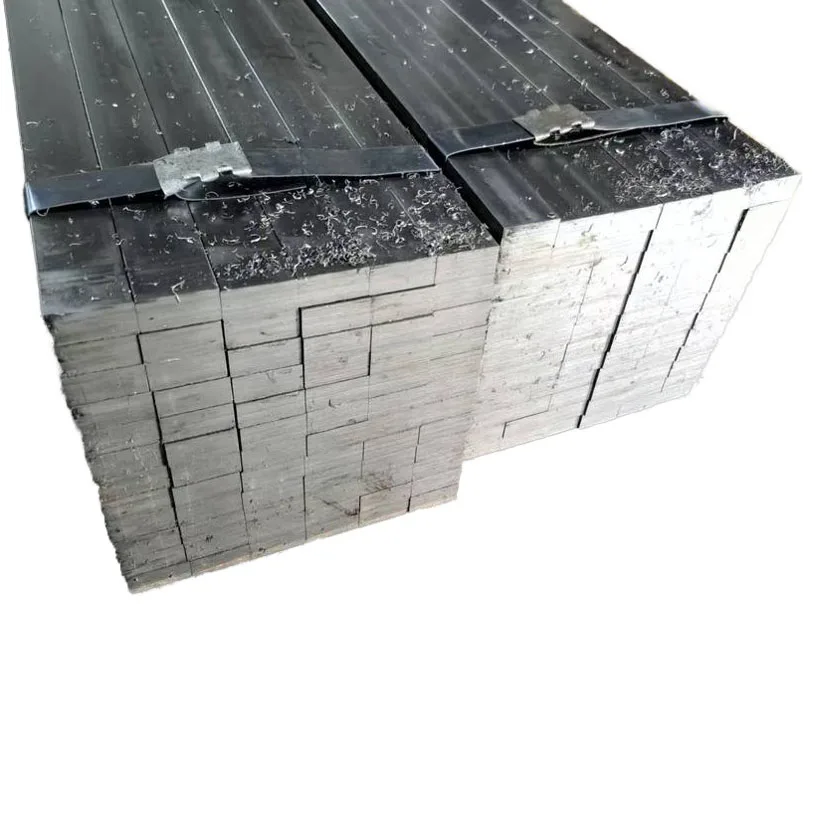

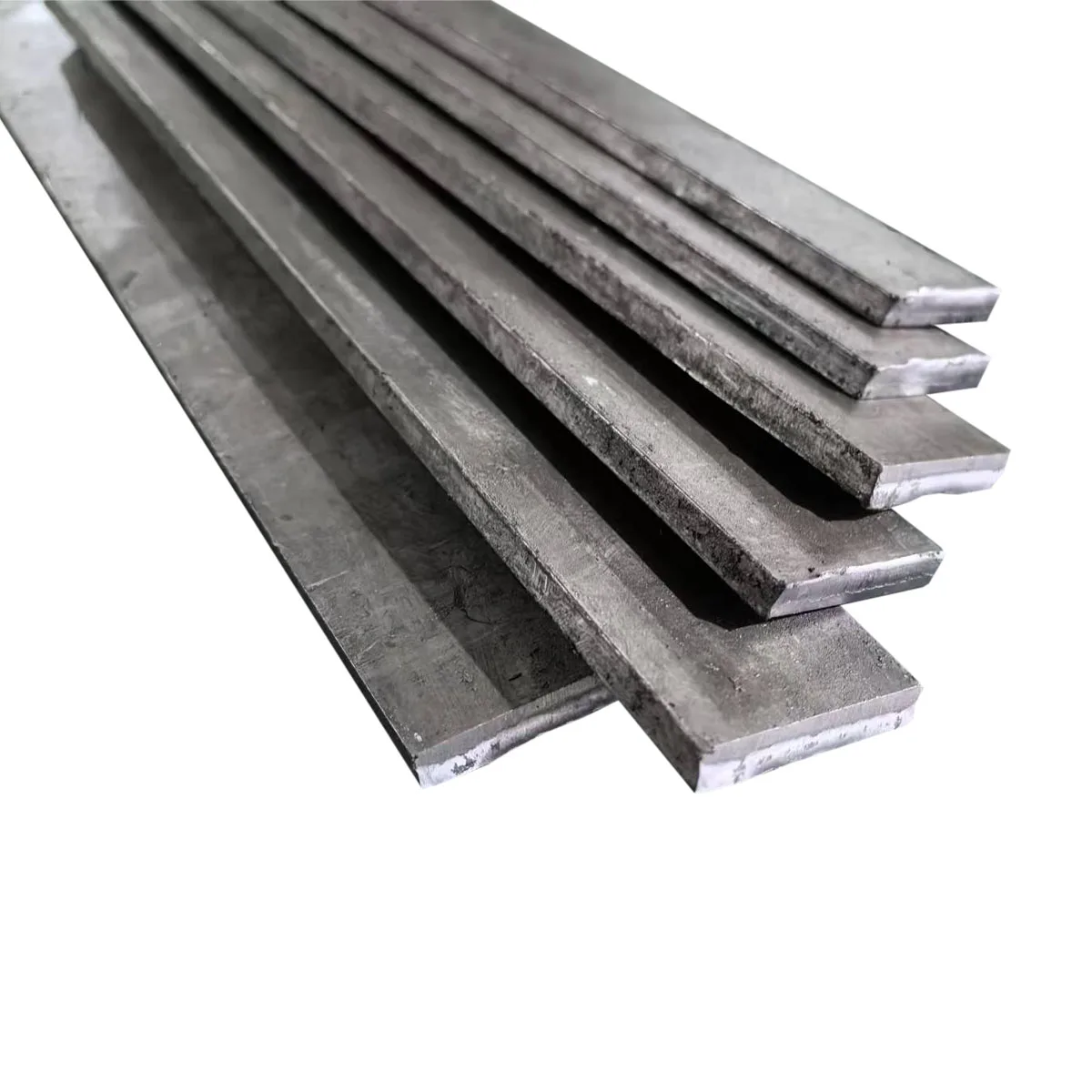

Standard Cold Drawn 1045 Alloy Steel Flat Bar with Cutting Service for Frame and Machines

● Chemical Composition Advantage: With a carbon content of 0.42%-0.50% and trace elements like manganese (0.60%-0.90%), 1045 steel strikes a perfect balance between strength and toughness. The manganese element enhances hardenability, allowing the steel to maintain structural stability even under long-term load-bearing conditions—critical for frames that support heavy machinery or equipment. Unlike low-carbon steels that lack sufficient strength or high-carbon steels that are too brittle, 1045 steel avoids deformation under load while resisting fracture from accidental impacts.​

● Superior Mechanical Properties: After cold drawing, our 1045 alloy steel flat bar exhibits outstanding mechanical performance: tensile strength reaches 600-750MPa, yield strength is ≥355MPa, and elongation after fracture is ≥16%. These parameters ensure that frames made from this flat bar can withstand static loads (such as the weight of machine components) and dynamic loads (such as vibration during machine operation) without structural failure. For example, in a 5-ton industrial machine frame, the 1045 flat bar can stably support the machine’s weight while absorbing vibration to prevent loose connections between components.​

● Excellent Machinability: Compared to high-carbon or high-alloy steels, 1045 steel has good machinability. Its moderate hardness (HB 170-210 in the cold-drawn state) allows for easy drilling, milling, and welding during frame assembly. Manufacturers can quickly process mounting holes, grooves, or connection points on the flat bar, reducing production time and tool wear. This advantage is particularly valuable for machine frames that require frequent secondary processing to fit motors, transmission systems, or other accessories.​

● Ultra-High Flatness and Dimensional Precision: Our cold-drawn 1045 flat bar adheres to strict dimensional standards. The thickness tolerance is controlled within ±0.1mm (for bars with thickness 5-20mm), and the flatness error is ≤0.5mm/m—far superior to hot-rolled flat bars (thickness tolerance ±0.3mm, flatness error ≤2mm/m). This precision ensures that when assembling machine frames, multiple flat bars can be seamlessly spliced without gaps or misalignment, avoiding stress concentration at connection points. For example, in a modular machine frame, the flatness of the 1045 flat bar ensures that each module fits tightly, reducing vibration and extending the machine’s service life.​

● Refined Grain Structure for Enhanced Stability: Cold drawing induces plastic deformation in the steel, breaking coarse grains formed during smelting into fine, uniform grains. This refined structure improves the steel’s fatigue resistance by 20%-30% compared to hot-rolled steel—essential for machine frames that endure long-term vibration. In a textile machine frame that operates 24 hours a day, the refined grain structure of the 1045 flat bar prevents micro-cracks from forming due to continuous vibration, doubling the frame’s service life compared to hot-rolled alternatives.​

● Smooth Surface for Easy Processing: The cold-drawing process creates a smooth surface with a roughness of Ra ≤0.8μm, eliminating the need for sanding or grinding before assembly. This not only saves production time but also improves the adhesion of surface treatments (such as painting or galvanizing). For outdoor machine frames, a smooth surface ensures that the anti-corrosion coating is evenly applied, enhancing resistance to rain, humidity, or industrial dust and extending the frame’s outdoor service life to 8-10 years.​

● Customized Length Cutting: Our cutting service supports length customization from 0.5m to 12m, precisely matching the size of the frame or machine component. For example, if a manufacturer needs 2.3m-long flat bars for a small equipment frame, we can cut the raw material to this exact length, eliminating the need for the manufacturer to purchase long bars and perform secondary cutting. This reduces material waste by 15%-20% (compared to manual cutting by manufacturers) and saves 30% of processing time.​

● High-Precision Cutting Technology: We use advanced CNC cutting machines with an accuracy of ±0.5mm per meter. This ensures that the cut ends of the flat bar are flat and perpendicular to the bar’s surface, avoiding the slanted or rough edges caused by manual cutting. For frame assembly, flat, precise cut ends allow for tight welding or bolting, preventing gaps that could weaken the frame’s structure. In a heavy-duty machine frame, the precise cut of the 1045 flat bar ensures that the weld joint bears load evenly, reducing the risk of weld cracking.​

● Flexible Cutting Modes: We offer both batch cutting and small-batch customized cutting to meet different production needs. For large-scale frame manufacturers ordering 10,000+ flat bars, we can implement automated batch cutting to ensure consistent length and efficiency; for small manufacturers or prototype development, we can quickly fulfill small-batch (even 1-piece) cutting orders, supporting flexible production schedules. Additionally, we provide deburring treatment for cut ends, removing sharp edges that could cause injury during assembly and eliminating the need for manufacturers to perform additional edge processing.​

● Reduced Production Costs: The combination of high precision and tailored cutting service minimizes material waste and processing time. For example, manufacturing a 3-meter machine frame using our pre-cut 1045 flat bar costs 12%-15% less than using hot-rolled flat bars (considering waste and secondary processing costs). The smooth surface also reduces the time spent on surface preparation before painting or welding, further lowering overall production expenses.​

● Enhanced Frame Stability and Durability: The high strength and fatigue resistance of the 1045 flat bar ensure that frames maintain structural stability over long-term use. Tests show that machine frames made from our cold-drawn 1045 flat bar have a service life of 8-12 years, compared to 5-7 years for frames made from hot-rolled low-carbon steel. This reduces the frequency of frame replacement and maintenance, lowering the total cost of ownership for manufacturers.​

● Simplified Assembly Process: The flatness and precise cutting of the 1045 flat bar simplify frame assembly. During welding, the flat surface ensures uniform heat distribution, reducing the risk of welding deformation; during bolting, the precise length and flat ends allow for accurate alignment of mounting holes. For example, in an automated production line frame, the pre-cut 1045 flat bars can be directly assembled without on-site adjustment, shortening the assembly cycle by 25%.​

● Wide Adaptability to Frame and Machine Types: Our 1045 flat bar is suitable for a variety of frame and machine applications:​

● Industrial Machine Frames: Such as lathe frames, milling machine frames, and press machine frames—where high load-bearing capacity and vibration resistance are required.​

● Equipment Frames: Including conveyor frames, packaging machine frames, and textile machine frames—where dimensional accuracy and easy assembly are key.​

● Structural Frames: Like workshop shelving frames, heavy-duty rack frames, and logistics equipment frames—where stability and durability are essential.​

● Incoming Material Inspection: Raw 1045 steel billets are tested for chemical composition (via spectral analysis) and mechanical properties (tensile, yield, and elongation tests) to ensure they meet ASTM A29 standards. Only billets that pass these tests are used for cold drawing.​

● In-Process Monitoring: During cold drawing, laser thickness gauges and flatness detectors monitor the flat bar’s dimensions in real time. Any deviations from the standard (e.g., thickness exceeding ±0.1mm) trigger immediate adjustments to the drawing process, ensuring consistency.​

● Final Testing: Each batch of finished flat bars undergoes rigorous testing: dimensional inspection (using coordinate measuring machines), hardness testing (HB scale), and surface roughness testing (Ra value). For cutting service orders, we also check the length accuracy and cut end flatness of random samples to ensure compliance with customer requirements.​

● Fast Delivery: With a monthly production capacity of 8,000 tons for 1045 alloy steel flat bars, we can fulfill standard orders (thickness 3-50mm, width 20-200mm) within 7-10 working days. For cutting service orders, additional 1-2 working days are needed for precise cutting and deburring, ensuring timely delivery to meet production schedules.​

● Reliable Logistics: We partner with leading logistics providers (DHL, FedEx, and Maersk) to offer door-to-door delivery. For large-volume orders, we use container shipping to reduce transportation costs; for urgent small-batch orders, we provide air freight options to meet tight deadlines.​

● Technical Support: Our team of metallurgists and engineers offers 24/7 technical support. We advise customers on material selection (e.g., whether 1045 steel is suitable for their specific frame load), cutting size optimization (to minimize waste), and post-processing recommendations (e.g., welding parameters or heat treatment for enhanced strength).​
