Cold Drawn Bright Metal Rod High Strength Precision Material Carbon Steel Cold Rolled Round ba

In the era of precision manufacturing, where even minute deviations can compromise product performance, the demand for high-quality raw materials with exceptional strength, dimensional accuracy, and surface finish is paramount. Our Cold Drawn Bright Metal Rod – High Strength Precision Material Carbon Steel Cold Rolled Round Bar emerges as a benchmark solution, combining the dual advantages of cold drawing and cold rolling processes to redefine the standards of carbon steel round bars. This product integrates high tensile strength, tight dimensional tolerances, and a mirror-like bright surface, making it an indispensable material for industries ranging from automotive engineering and precision machinery to high-end hardware production. Unlike ordinary hot-rolled or single-process cold-worked round bars, it eliminates the need for extensive post-processing, streamlining production workflows and ensuring consistent quality for critical components.

The core superiority of this round bar lies in its advanced dual cold-working process – cold drawing followed by cold rolling – which synergistically enhances both mechanical properties and surface quality. The production journey begins with high-quality carbon steel billets (primarily 10#, 20#, 35#, and 45# grades), selected for their uniform chemical composition and low impurity content. These billets first undergo annealing treatment to soften the material, reduce internal stress, and improve plasticity, laying the foundation for subsequent cold working. The first key process is cold drawing: the annealed billets are pulled through a precision round die at room temperature using servo-controlled drawing machines. This process exerts controlled tensile force, refining the steel’s grain structure into a dense, uniform arrangement that increases tensile strength by 20%-30% compared to hot-rolled equivalents. For example, 45# carbon steel achieves a tensile strength of 550-650MPa after cold drawing, far exceeding the 350-450MPa of hot-rolled 45# steel.

Following cold drawing, the round bar undergoes cold rolling – a precision finishing process that further elevates its quality. Cold rolling passes the bar through a set of rotating rolls, which apply compressive force to achieve ultra-tight dimensional accuracy. The diameter tolerance is controlled within ±0.02mm, and straightness is calibrated to ≤0.2mm/m, ensuring the bar fits seamlessly into precision machining equipment without adjustments. More importantly, cold rolling creates a smooth, bright surface with a roughness of Ra ≤ 0.4μm – a mirror-like finish that eliminates surface defects such as tool marks, oxide scale, and micro-cracks. This dual process not only enhances strength and precision but also improves the bar’s machinability: the dense grain structure reduces tool wear, while the smooth surface minimizes friction during cutting, drilling, and turning operations.

The high strength and precision of this round bar translate to tangible benefits for manufacturers, addressing key pain points in precision production. First, its enhanced mechanical properties ensure the durability of finished components. In automotive transmission shafts made from our 45# grade round bar, the high tensile strength and yield strength (≥355MPa) enable the component to withstand high rotational speeds and torque without deformation or failure. Second, the tight dimensional tolerances reduce machining allowances, cutting material waste by 10%-15% compared to using ordinary round bars. A precision hardware manufacturer producing M12 bolts reported that our round bar required only 0.1mm of turning allowance, compared to 0.3mm for hot-rolled bars, significantly improving material utilization. Third, the bright surface eliminates pre-processing steps such as grinding and polishing, shortening production cycles by 20% and reducing labor costs. For example, a machinery factory producing linear guide rails cut their total processing time by 18% after switching to our cold drawn and cold rolled round bar, as the bright surface met the final product’s surface quality requirements directly.

The versatility of this carbon steel round bar is reflected in its wide range of applications across high-precision industries. In the automotive industry, it is used to manufacture core components such as transmission shafts, valve stems, and gear blanks – its high strength and precision ensure the safety and reliability of vehicle operations. A leading automotive OEM confirmed that using our round bar for gear blanks reduced machining errors by 40% and extended gear service life by 25%. In the precision machinery industry, it serves as raw material for CNC machine tool components, linear guides, and precision shafts – the tight tolerances and smooth surface enable high-precision movement and positioning. For example, a CNC router manufacturer uses our 35# grade round bar for lead screws, achieving a positioning accuracy of ±0.005mm. In the hardware manufacturing industry, it is processed into high-grade bolts, nuts, and bearings – the bright surface enhances corrosion resistance and aesthetic appeal, making it suitable for high-end consumer products. In the aerospace auxiliary equipment industry, it is used for ground support equipment components, where its high strength and dimensional stability meet strict industry standards. The round bar is available in a comprehensive range of specifications: diameters from 5mm to 80mm, lengths from 1m to 12m, and can be customized with cutting, chamfering, or surface treatments (such as galvanizing or anti-rust oiling) to meet specific application needs.

A strict quality control system ensures that every batch of round bar meets the rigorous requirements of precision manufacturing. We have established a four-stage inspection process aligned with ISO 9001 and IATF 16949 certifications: raw material inspection, cold drawing process inspection, cold rolling process inspection, and finished product inspection. Key tests include: spectral analysis to verify chemical composition, tensile testing to confirm strength, laser diameter measurement to check dimensional accuracy, surface roughness testing to ensure finish quality, and ultrasonic testing to detect internal defects. Each batch is accompanied by a detailed quality inspection report, recording test data and compliance with standards, providing customers with complete quality traceability. For automotive and aerospace customers, we also offer PPAP (Production Part Approval Process) documentation to support their production validation.

Beyond product quality, we provide precision-focused value-added services to enhance customer efficiency. Our technical team offers pre-sales consultation to help customers select the optimal carbon steel grade – for example, recommending 10# grade for formable components and 45# grade for high-load parts. We provide customized precision cutting services using CNC cold saws, cutting the round bar into fixed lengths with burr-free ends to reduce on-site setup time. After-sales, we send technicians to the customer’s production site to guide machining processes, such as recommending optimal cutting speeds and tool selections. A customer producing precision shafts once encountered chip adhesion; our team adjusted the steel’s tempering parameters and recommended a specialized cutting fluid, resolving the issue within 24 hours.

As precision manufacturing continues to advance toward higher efficiency and stricter quality standards, our Cold Drawn Bright Carbon Steel Round Bar remains at the forefront of material innovation. We are committed to continuous improvement: optimizing the cold drawing and rolling processes to achieve even tighter tolerances, developing micro-alloyed carbon steel grades to further enhance strength, and introducing intelligent production equipment to improve batch consistency. Whether for small-batch precision machining or large-scale mass production, our round bar delivers the perfect combination of high strength, precision, and surface quality, supporting manufacturers in creating high-performance products that stand out in competitive markets.

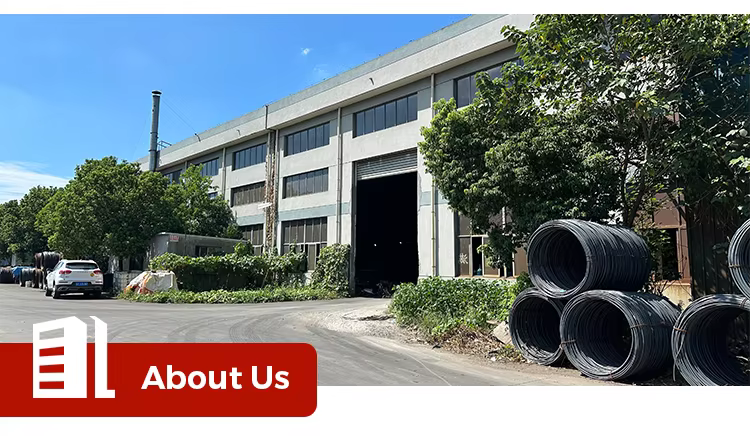

Jiangsu Beitong Cold-Drawn Steel Technology Co., Ltd.
